CHORUS – COMPOSITES

CHORUS systems are widely used for inspecting carbon composites in aerospace manufacturing using Ultrasonic Testing (PE, TTU, PAUT, LUT), Digital Radiography (DR), Thermography, and Shearography. The integrated NDT-WEB ROUTINE software covers the full inspection processes required to manage the inspection.

‍

Large Component Cells

• The part is introduced in the inspection cell, which incorporates the tooling to hold the part in place.
• The robotic cell design is tailored to match the scale and complexity of the product/s inspected.
• Multi-axis motion for complex geometries and hard-to-reach areas.

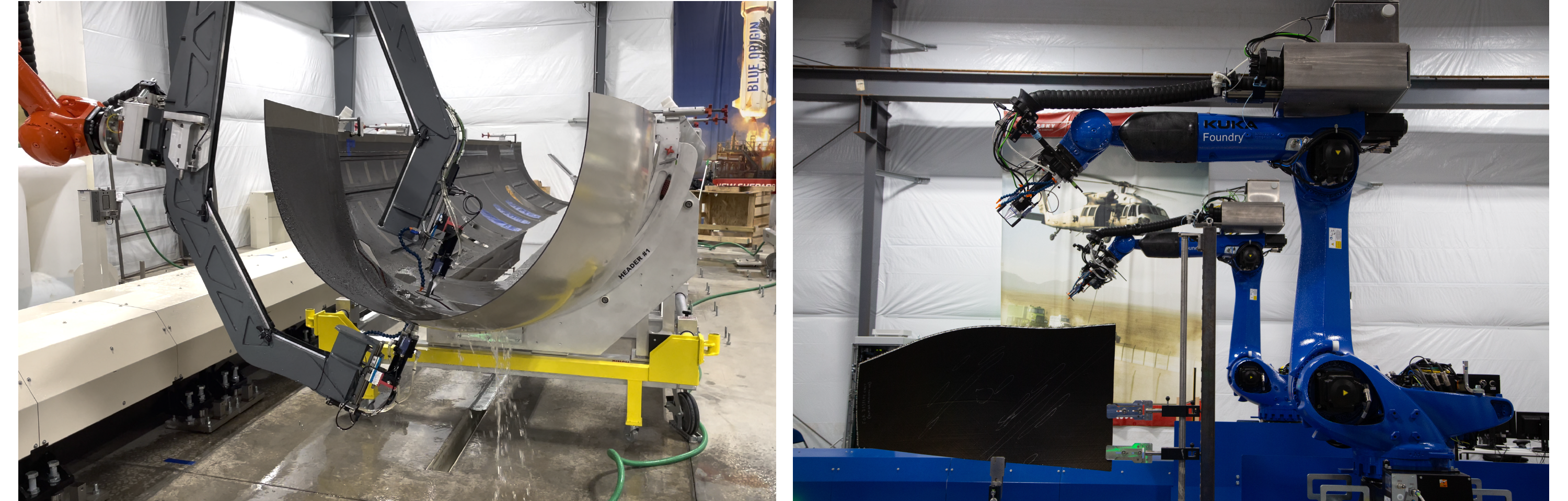

• Standard configurations include single or multi-robotic scanning of large or fixed components. Typical constructions include:
  • Single Robot (6-axis). Water-column UT/PAUT, Immersion Tank, and TTU with a yoke.
  • Dual or Triple Robot (6-axix * 2). Water-column UT/PAUT, Immersion Tank, dual robot TTU. Inspecting shared or separate areas simultaneously.

‍

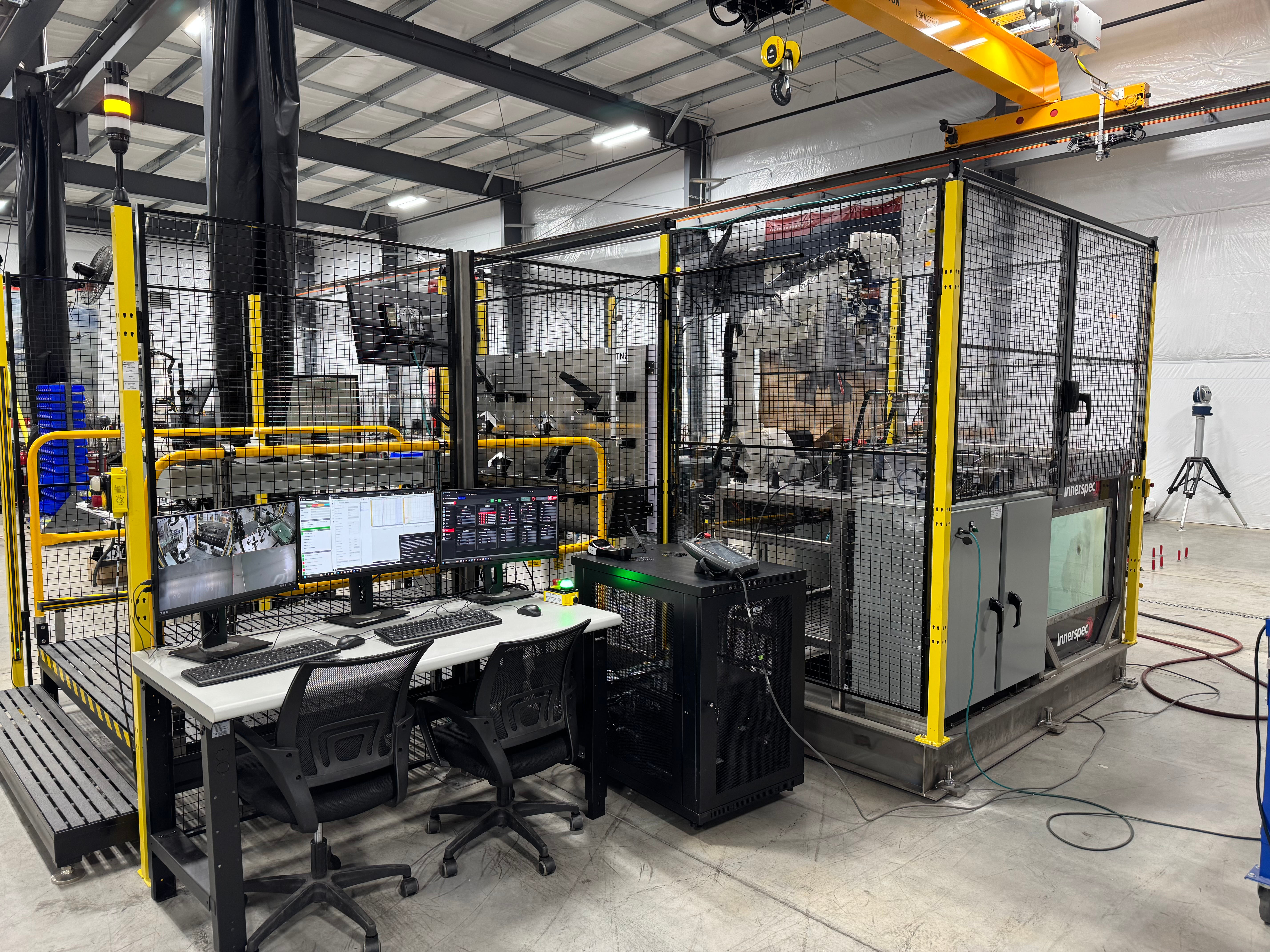

Small Component Cells

• Used for the inspection of thermoplastic or carbon-fiber reinforced clips used in airframe assembly to secure structural components.
• Composite clips can have hundreds of small variations that require unique manipulation and inspection strategies.
• The cells incorporate automated part handling, positioning, and scanning with customized part nests and tool changers.
• Proprietary technique permits modifying the robot path based on scanning results to accommodate manufacturing variabilities.
