ALUMINUM LOGS IN-LINE (EMAT)

CHORUS AL-NB is designed for inspection of cast aluminum logs as they traverse through the line without rotation.

Features

• Non-contact ultrasonic EMAT inspection technique without couplant.
• Detects cracks, inclusions, worm-holes, and segregation within the central third of aluminum logs ranging from 7" to 19" in diameter.
• Two independent sensors to ensure redundancy, reliability, and consistent coverage.
• Saves a complete digital record of every log inspected for traceability and quality assurance.

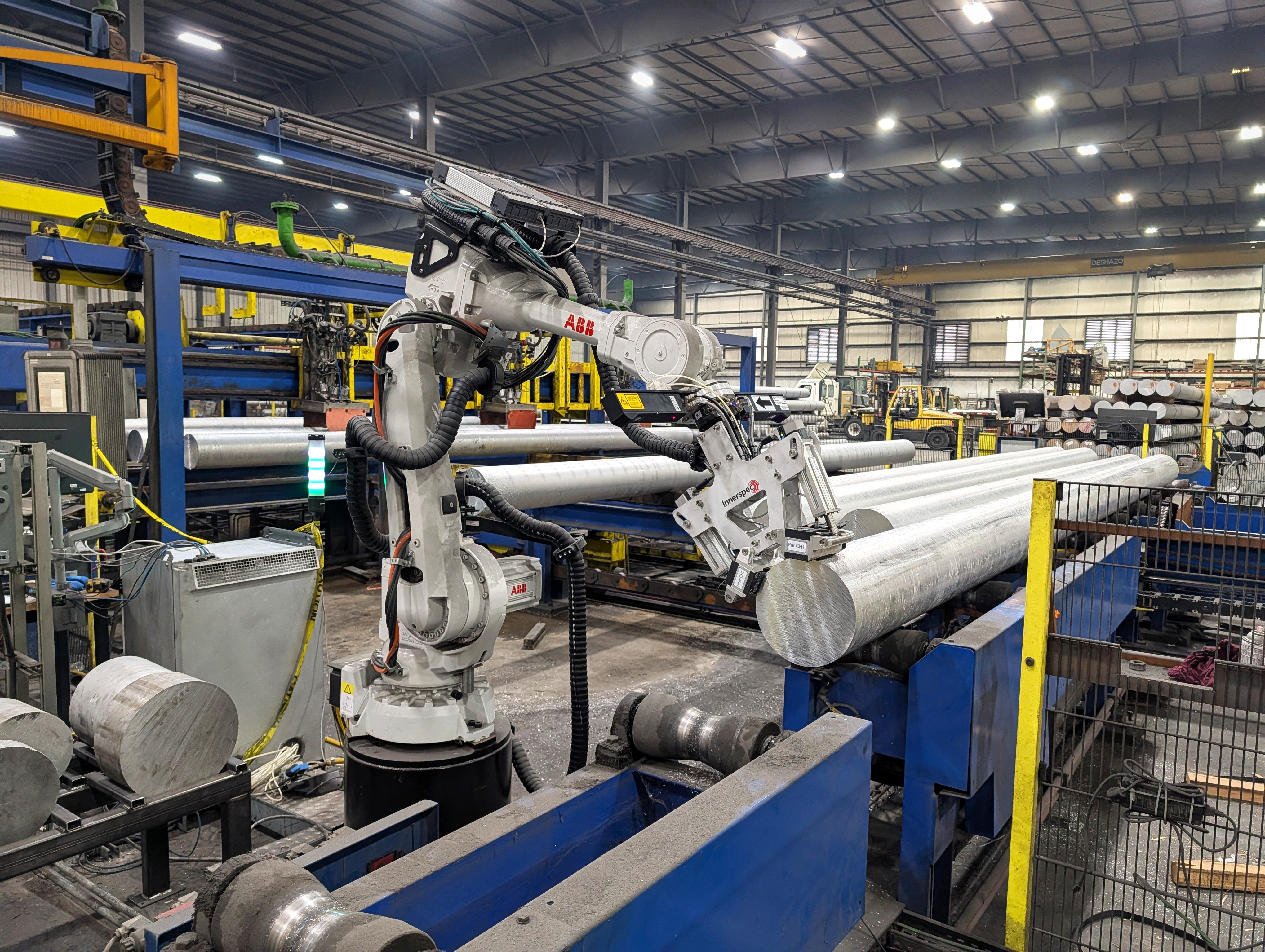

• Seamless integration on existing log conveyors with a universal six-axis robot:

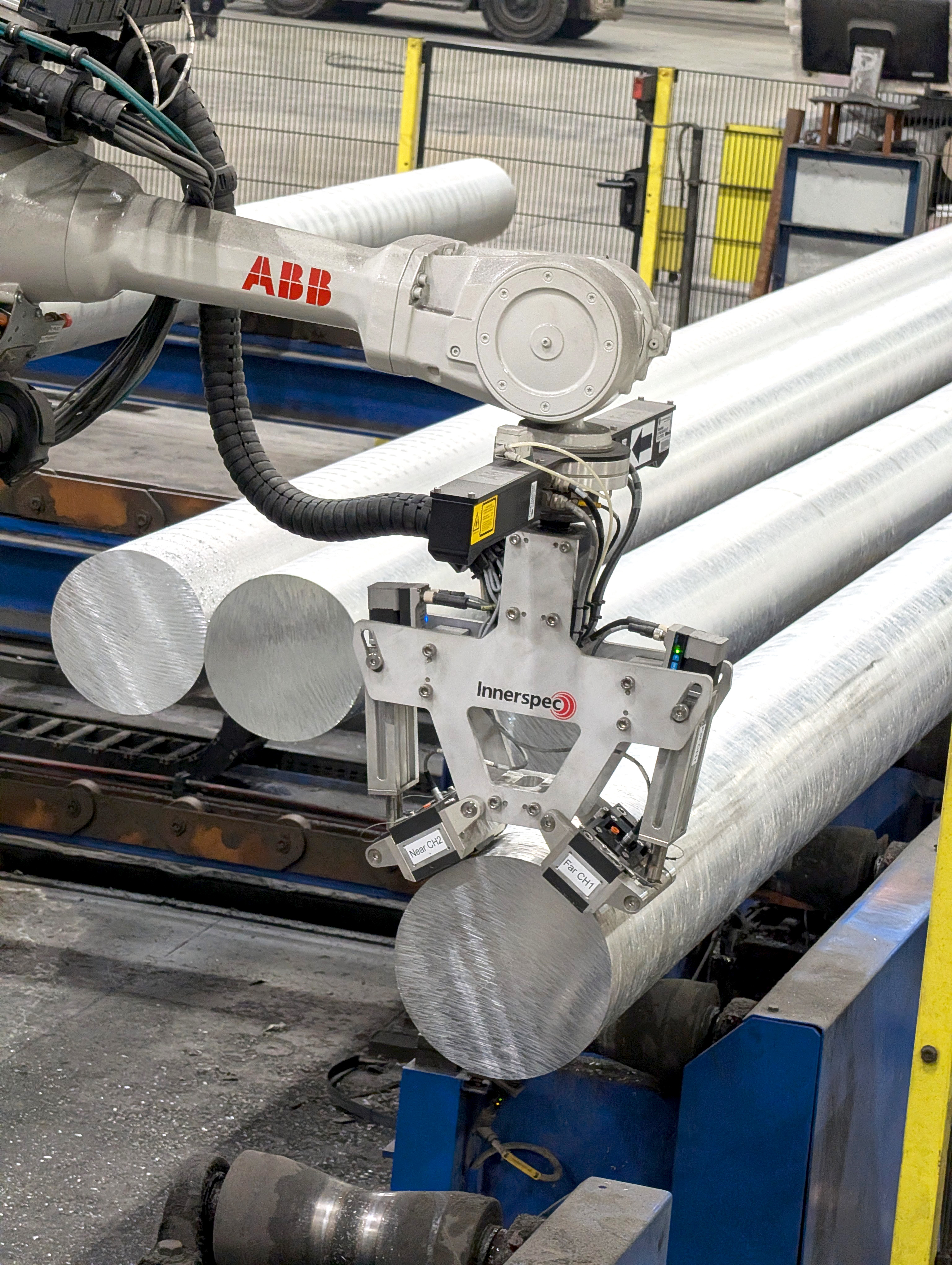

  • Integrated 2D laser sensors and EMAT sensor actuators.
  • Laser sensors detect the log shape, orientation, and direction, and automatically position the EMAT sensors to maintain proper compliance during inspection.
  • Automatic robot repositioning to different locations around the log diameter for re-scanning and defect verification.
  • Built-in calibration rack for automatic verification and calibration while in production.
  • Industrial, high-production robot with negligible maintenance needs.
